3 Years Warranty and maintenance free with a 3500-8000 cycles life.
Low Temperature Charge Cut off (0°C)
MAX. CONNECT ( Get more Capacity or Voltage)
Connect in Series: 24V ,36V, 48V (max.), 4pcs battery in series.
Connect in Parallel: 800Ah (max.), 4pcs battery in parallel.
Connect in Parallel & Series: 48V 800Ah (max.)
How to connect battery in series or parallel? Check here.

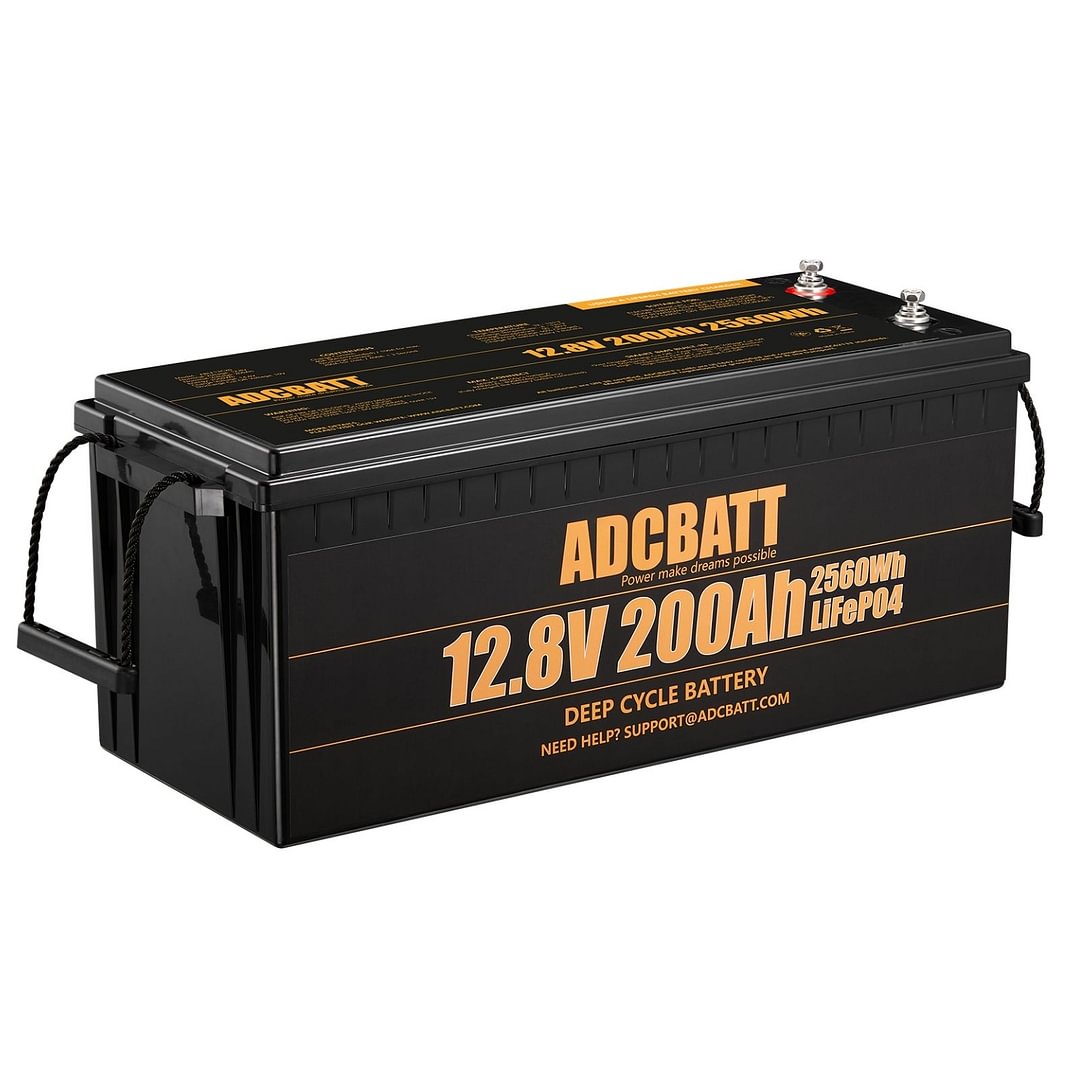

NOMINAL VOLTAGE: 12.8V
NOMINAL CAPACITY: ≥200Ah (40A discharge at 77°F/ 25°C)
ENERGY: 2560 Wh
CHARGE
100A max at 14.6±0.2V
This battery should be charged using a lifepo4 battery charger.
DISCHARGE
200A max continuous, 400A max. 3second pulse, 10V discharge cut off voltage
20-50A recommended for longest lifetime
CYCLE LIFE (≥80% Capacity)
>3500 cycles with 100% DOD, 40A
>8000 cycles with 50% DOD, 40A
TEMPERATURE
Charge: 32-131°F / 0-45°C
Discharge: -4-131°F / -20-55°C
Storage: 50-86°F / 10-30°C
Longe Period Storage: 50% charged, charge the battery every 3months.
MONTHLY SELF DISCHARGE: ≤3.5% at 77°F/ 25°C
DIMENSION: 20.86x8.11x8.46inch / 530x206x215mm
WEIGHT: 46.5Lbs / 21.1Kgs
TERMINALS: F12 terminals, Bolt size: M8
SMART BMS BUILT-IN
Over Charge Voltage Cut Off, Over Discharge Voltage Cut Off, Over Discharge Current Cut Off, Short Circuit Protection, High/Low Temperature Charge Cut Off, Cell Balancing, High Temperature Discharge Cut Off
CERTIFICATION
All batteries are UN38.3 certified, ADCBATT's cells are UL1642 certified and complied with IEC 62133 standards. Meets all international regulations for ground, train, air & sea shipment.
SUITABLE FOR
Trolling Motor, Solar Energy Storage, Industrial Batteries, LiFePO4 replacement for SLA 12V, Home Solar & Power Walls, Marine Application, Fish Finder, Flashers, Boating Electronics, Ice Fishing, Recreational Vehicles, Off-Grid Homes.
NOT SUITABLE FOR STARTING ENGINES
This is a 12V deep cycle battery.
