3 Years Warranty and maintenance free with a 2000-6000 cycles life.
MAX. CONNECT ( Get more Capacity or Voltage)
Connect in Series: 24V ,36V, 48V (max.), 4pcs battery in series.
Connect in Parallel: 64Ah (max.), 4pcs battery in parallel.Connect in Parallel & Series: 48V 64Ah (max.)
How to connect battery in series or parallel? Check here.

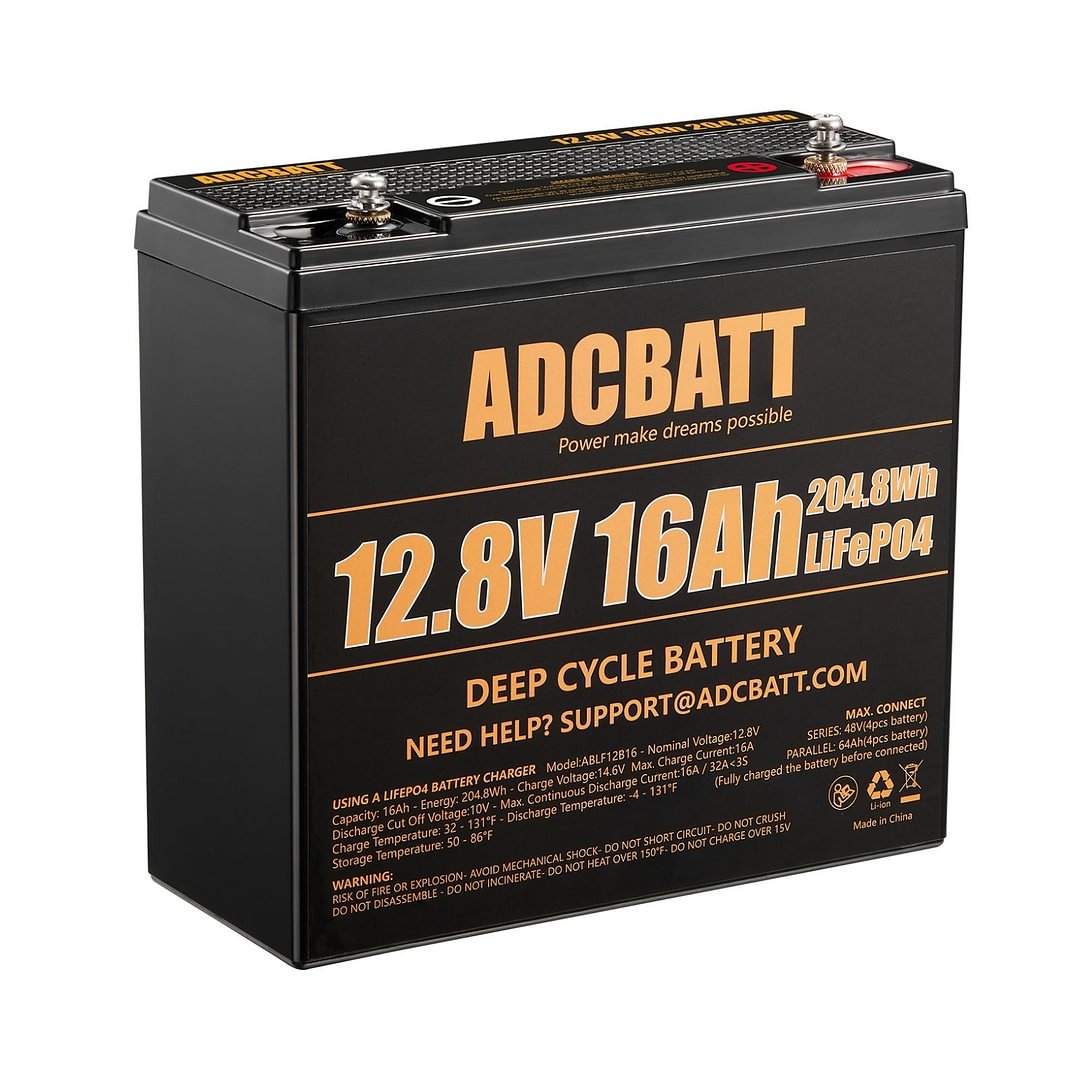

NOMINAL VOLTAGE: 12.8V
NOMINAL CAPACITY: ≥16Ah (3.2A discharge at 77°F/ 25°C)
ENERGY: 204.8 Wh
CHARGE16A max at 14.6±0.2V
This battery should be charged using a lifepo4 battery charger.
DISCHARGE16A max continuous, 32A max. 3second pulse, 10V discharge cut off voltage
3.2-8A recommended for longest lifetime
CYCLE LIFE (≥80% Capacity)>2000 cycles with 100% DOD, 3.2A
>6000 cycles with 50% DOD, 3.2A
TEMPERATURECharge: 32-131°F / 0-45°C
Discharge: -4-131°F / -20-55°C
Storage: 50-86°F / 10-30°C
Longe Period Storage: 50% charged, charge the battery every 3months.
MONTHLY SELF DISCHARGE: ≤3.5% at 77°F/ 25°C
DIMENSION: 7.13x3.07x6.46inch / 181x78x164mm
WEIGHT: 4.3Lbs / 1.95Kgs
TERMINALS: F12 terminals, Bolt size: M5
SMART BMS BUILT-INOver Charge Voltage Cut Off, Over Discharge Voltage Cut Off, Over Discharge Current Cut Off, Short Circuit Protection,Cell Balancing
CERTIFICATIONAll
batteries are UN38.3 certified, ADCBATT's cells are UL1642 certified and complied with IEC 62133 standards. Meets all international regulations for ground, train, air & sea shipment.
SUITABLE FORFish Finder, Flashers, Boating Electronics, Ice Fishing, Kids Toy Scooter Batteries, Solar Lighting, Hiking, Camping, Remote Power, Outdoor.
NOT SUITABLE FOR STARTING ENGINESThis is a
12V deep cycle battery.
